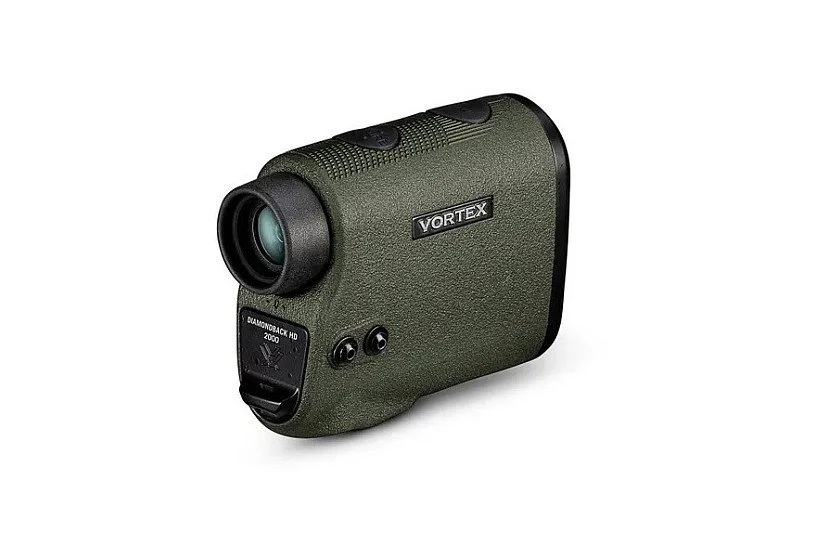

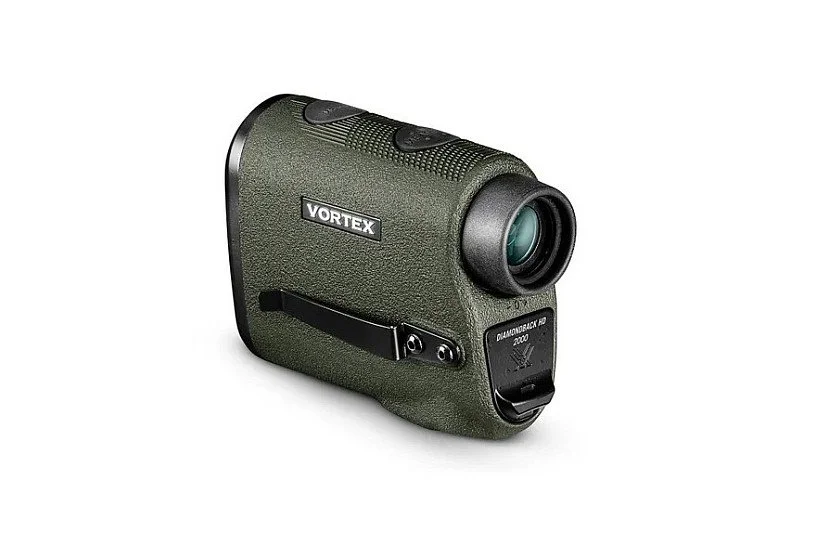

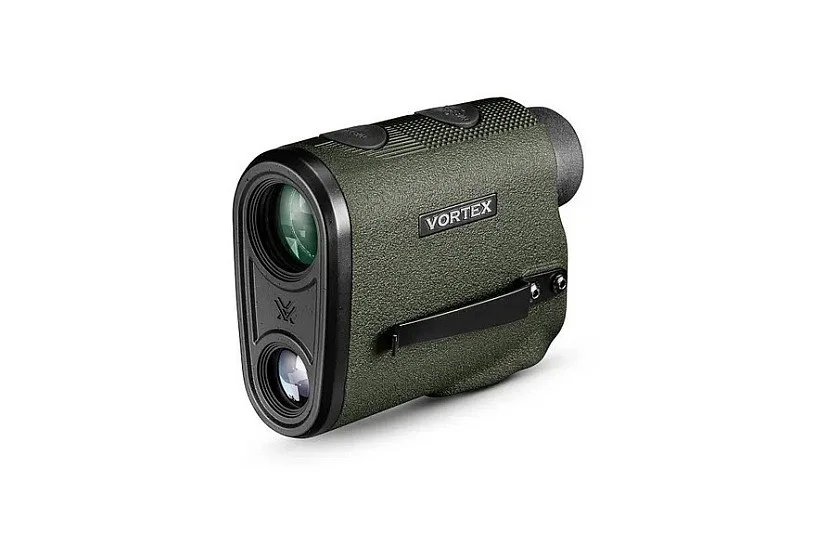

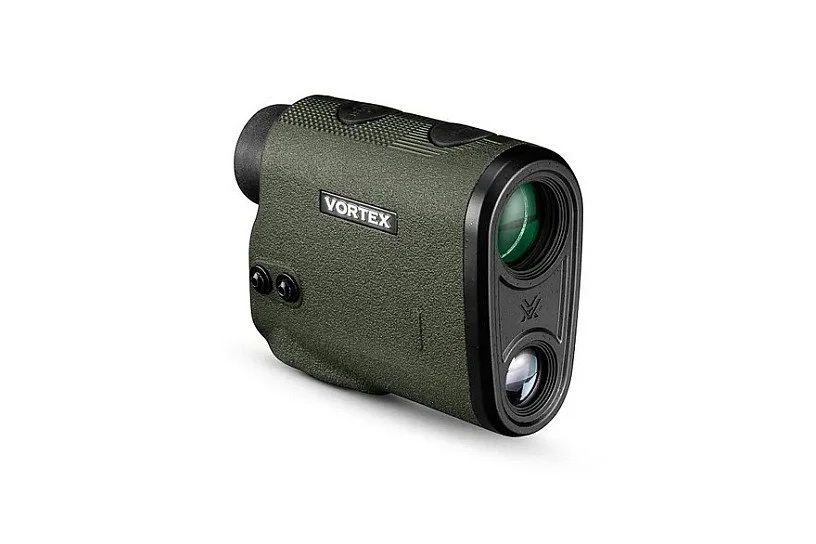

The Diamondback® HD 2000 Laser Rangefinder pulls no punches with its easy-to-use controls, high-definition optical system, and superior ranging capability. It’ll provide an accurate distance between you and your target, eliminating guesswork and setting up a clean shot. With the lenses protected with ArmorTek®, the exterior protected with a rubber armor, and designed both waterproof and shockproof, this rangefinder is ready for any hunt on any terrain and in any weather. Don’t leave home without it.
Unlimited, Unconditional, Lifetime Warranty: The VIP® Warranty is Vortex’s Very Important Promise to you. If your Vortex® product—whether a riflescope, red dot, rangefinder, apparel, or accessory—becomes damaged or defective, we'll repair or replace it at no charge to you. It doesn't matter how it happened, whose fault it was, or where you purchased it. If you have a problem, we promise to take care of you. Rest assured, if it wears the Vortex® name, it's covered.

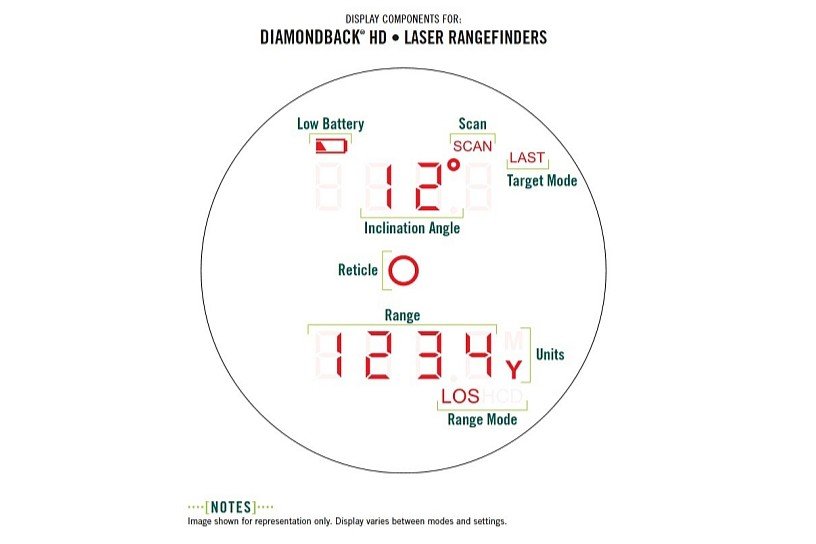

Ranging Modes:
Horizontal Component Distance (HCD): Displays the slope angle compensated distance to the target.
Line of Sight (LOS): Displays the actual line of sight range.
Scan Feature: Displays continuous distance readings while panning across a landscape.
Target Modes:
Normal Mode: The standard mode providing the target's range with the strongest range result. Recommended for most situations.
Last Mode: Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc.
Feature Tech:
HD Optical System: Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
XR™ Plus Lens Coatings: Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
ArmorTek®: Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Red OLED Display: Optimized for low light.
Ranging Format: Range in yards or meters.
Diopter: Adjusts for differences in a user's eyes. Located on the eyepiece.
Rubber Armor: Provides a secure, non-slip grip, and durable external protection.
Waterproof: Designed to withstand harsh weather conditions.
Shockproof: Designed to withstand the highest levels of impact.

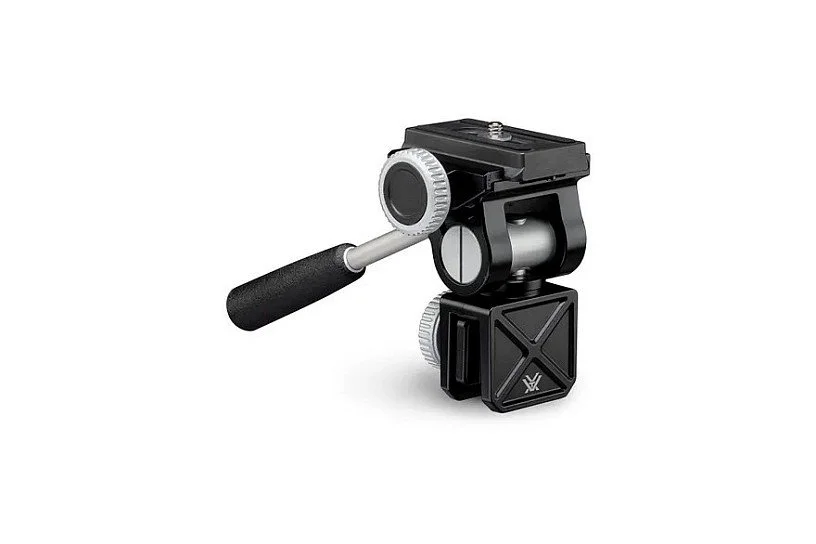

Tripod Adaptable: Allowing use on a tripod or car window mount. Tripod adapter may be required.
Specifications:
Magnification: 7x
Objective Lens Diameter: 24 mm
Eye Relief: 16.0mm
Angular Field of View: 6.4º
Linear Field of View: 335' @ 1000 yds
Range Reflective (yards): Up to 2,000 yds.
Range Tree (yards): Up to 1,800 yds.
Range Deer (yards): Up to 1,400 yds.
Min Range: 5 yds.
Accuracy: 1 yds. @100 yds.
Length: 4.1"
Height: 3.1"
Width: 1.8"
Weight: 7.6 oz.
Max Angle Reading: +/- 60º
