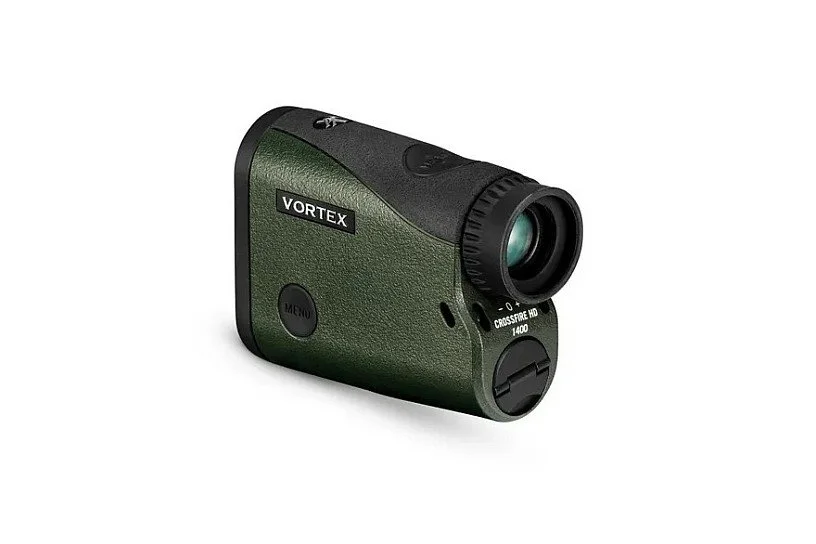

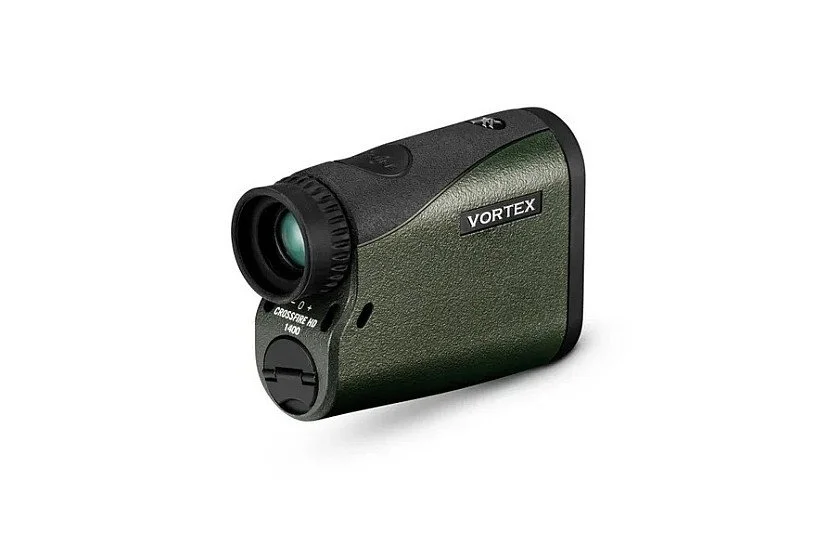

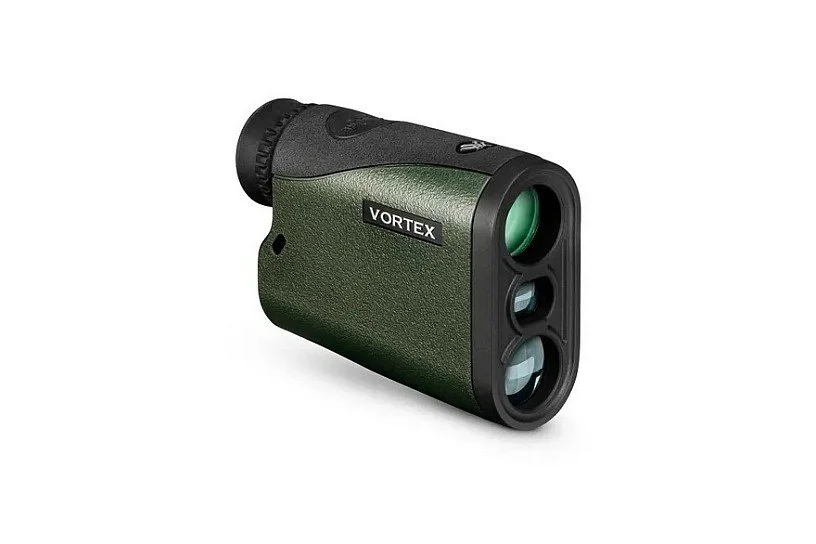

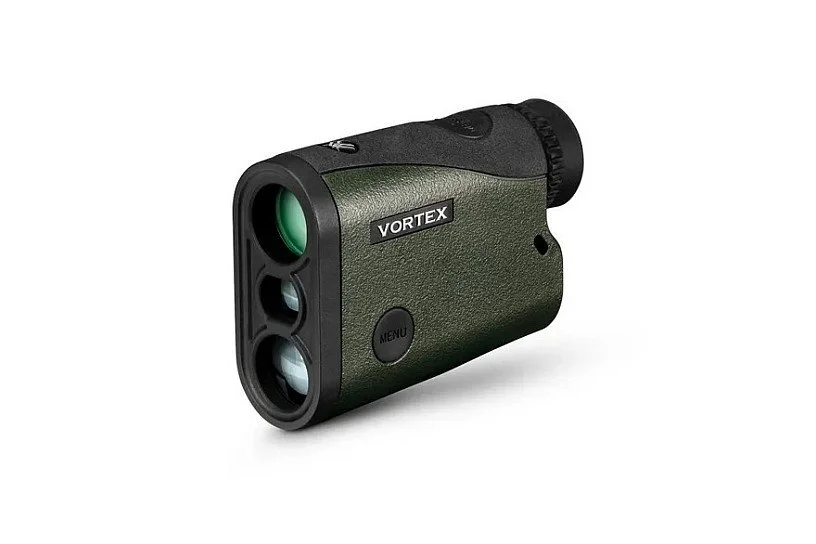

Confidence can wan out in the field, among the timber, or up the mountainside for first time hunters or even the experienced when making a judgment call on a target moving within your range. The Crossfire® HD 1400 Laser Rangefinder secures your confidence with a spot-on distance reading to make a clean shot. Its superior HD Optical System provides high resolution images with outstanding color accuracy and edge-to-edge sharpness. Ruggedly built and designed to be waterproof and shockproof, the Crossfire® HD 1400 will perform strong and steady for a lifetime.
Unlimited, Unconditional, Lifetime Warranty: The VIP® Warranty is Vortex’s Very Important Promise to you. If your Vortex® product—whether a riflescope, red dot, rangefinder, apparel, or accessory—becomes damaged or defective, we'll repair or replace it at no charge to you. It doesn't matter how it happened, whose fault it was, or where you purchased it. If you have a problem, we promise to take care of you. Rest assured, if it wears the Vortex® name, it's covered.
Ranging Modes:
Horizontal Component Distance (HCD): Displays the slope angle compensated distance to the target.
Line of Sight (LOS): Displays the actual line of sight range.
Scan Feature: Displays continuous distance readings while panning across a landscape.
Target Modes:
Normal Mode: The standard mode providing the target's range with the strongest range result. Recommended for most situations.
First Mode: Displays the closest distance when ranging. Ideal for ranging a smaller target in front of other larger or more reflective objects.
Last Mode: Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc.
Feature Tech:
HD Optical System: Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
XR™ Plus Lens Coatings: Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
ArmorTek®: Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.

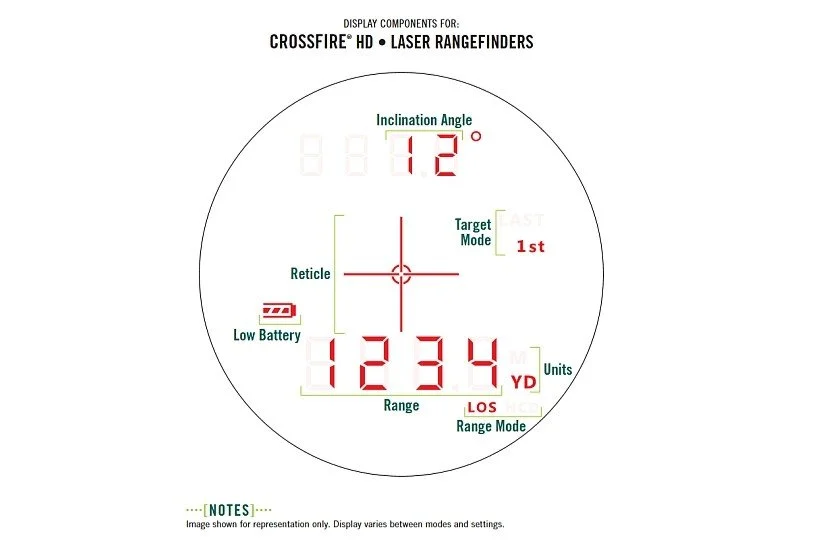

Red TOLED Display: Optimized for low light.
Ranging Format: Range in yards or meters.
Diopter: Adjusts for differences in a user's eyes. Located on the eyepiece.
Waterproof: Designed to withstand harsh weather conditions.
Shockproof: Designed to withstand the highest levels of impact.
Specifications:
Magnification: 5x
Objective Lens Diameter: 21 mm
Eye Relief: 16.0mm
Angular Field of View: 7.0º
Linear Field of View: 367' @ 1000 yds
Range Reflective (yards): Up to 1,400 yds.
Range Tree (yards): Up to 950 yds.
Range Deer (yards): Up to 750 yds.
Min Range: 5 yds.
Accuracy: 1 yds. @100 yds.
Length: 4.0"
Height: 2.9"
Width: 1.3"
Weight: 4.8 oz.
Max Angle Reading: +/- 89º
